Architecture Guide
A comprehensive, developer-friendly breakdown of the Imposter desktop application. This document explains how every core feature operates under the hood, the major technical challenges faced during development, and solutions that may help you build similar systems.
Why Electron?
A regular web app can't do what Imposter does. Browsers sandbox JavaScript — they block access to OS-level APIs, enforce CORS on every HTTP request, and have no mechanism for content protection or global keyboard shortcuts.
Electron gives us two worlds: a full Node.js runtime (Main Process) for OS-level operations, and a Chromium browser (Renderer Process) for a rich UI. The cost is the ~150MB binary size, but the benefit is complete OS control with a web-tech UI — exactly what a stealth overlay application needs.
1. The Multi-Process Model
Electron uses a multi-process architecture modeled after Chromium. Each process is isolated — a crash in one renderer doesn't take down the main process or other windows. Understanding this separation is key to understanding every feature in Imposter.
Main Process
src/main/ • Node.js Runtime
- › Window Management — Creating and destroying the transparent glass windows (Main Chat, Snipper overlay, Dynamic Island). Each is a separate
BrowserWindowinstance. - › Global Shortcuts — Registering system-wide keyboard shortcuts via
globalShortcut.register(). These fire even when Imposter is not focused. - › Network I/O — All external HTTP and WebSocket traffic (Ollama, OpenRouter, AssemblyAI) flows through Main to bypass browser CORS.
- › OCR Engine — Runs
tesseract.jsin-process for pixel-to-text extraction. - › Lifecycle — App bootstrap, graceful shutdown, and crash recovery.
Renderer Process
src/renderer/ • Chromium Sandbox
- › Chat Interface — Main window. Markdown rendering (GFM), syntax-highlighted code blocks, conversation history, settings panel.
- › Dynamic Island — A tiny pill-shaped overlay window for real-time transcription text. Separate renderer, separate lifecycle.
- › Snipper Window — Temporary fullscreen transparent overlay for region selection. Spawned on-demand, destroyed after crop.
- › Audio Worklets — Custom
AudioWorkletProcessorfor slicing raw PCM audio into 100ms buffered chunks. - › Local Storage — Personas, resume, job description, and API keys are stored client-side. Never sent to any server.
The Bridge
preload.js • Context Isolation
- › The Renderer cannot import Node modules directly —
contextIsolation: trueenforces this boundary. - ›
preload.jsusescontextBridge.exposeInMainWorld()to inject a safewindow.electronAPIobject. - › Each method maps to a specific
ipcRenderer.invoke()oripcRenderer.on()channel. - › Channels are hard-coded — the UI cannot call arbitrary IPC channels. This prevents prototype pollution attacks.

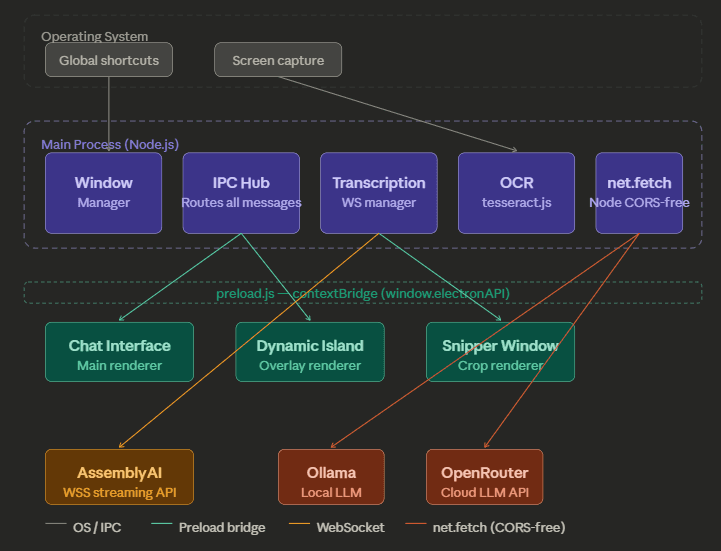

Architecture Diagram
Data flows downward from OS-level triggers through the Main Process, across the Preload bridge into Renderer UIs. External services (AssemblyAI, Ollama, OpenRouter) are accessed only from Main Process via native Node.js networking.
IPC Communication Patterns
All cross-process communication in Imposter uses Electron's IPC module. There are three distinct patterns depending on the direction and nature of the message:
Renderer calls ipcRenderer.invoke(channel, data) and awaits a promise from Main.
Used for: AI chat queries, OCR results, model list fetching.
Renderer calls ipcRenderer.send(channel, data) with no response expected.
Used for: Audio chunk streaming, window state changes, stopping transcription.
Main Process calls win.webContents.send(channel, data) to push data into the UI.
Used for: Live transcription text, screenshot delivery, settings sync.
2. Feature Deep-Dives
Step-by-step breakdowns of how each major subsystem works internally.
The Stealth Mode UI System
Goal: Create a UI that floats above everything, doesn't show up in screen sharing, and hides from the taskbar.
Window Creation
The Main Process creates a BrowserWindow with transparent: true, frame: false, and skipTaskbar: true. This makes the window completely invisible in system UI — no title bar, no taskbar entry.
Z-Order Pinning
win.setAlwaysOnTop(true, 'screen-saver') pins the window at the screen-saver z-level — above almost every other OS element, including fullscreen applications and system dialogs.
Content Protection (DRM)
win.setContentProtection(true) leverages OS-level DRM to prevent screen recording tools (OBS, Teams, Zoom, Discord) from seeing the window. The window renders as a black rectangle or is completely invisible to screen capture APIs. This is a Windows DXGI hardware flag, not a software trick.
Glassmorphism Layer
With opacity: 0.9 and CSS backdrop-filter: blur(), the window blends into whatever is behind it. Combined with transparency, the app feels like a floating glass panel rather than a separate application.
Screen Snipping & OCR Pipeline
Goal: Let the user draw a box on the screen, capture the text inside it, and insert it into the prompt.
Global Shortcut Trigger
User presses Ctrl+Shift+S. The Main Process intercepts via globalShortcut.register().
Desktop Capture
Main Process uses desktopCapturer.getSources() to take a full-screen screenshot as a NativeImage buffer. This is immediately passed via IPC to a new temporary fullscreen Snipper Window.
Region Selection
The user draws a rectangle on the frozen screenshot overlay. The Snipper captures coordinates (x, y, width, height) and sends them back to Main via IPC. Pressing Esc cancels the operation.
Crop & OCR
Main Process crops the original screenshot using nativeImage.crop(), then feeds the pixel buffer to tesseract.js which runs entirely locally — no data leaves the machine.
Text Delivery
Extracted text is sent via IPC to the Chat Renderer and auto-appended to the prompt textarea. The Snipper Window is destroyed. Total round-trip: ~2 seconds for most text.
Real-Time Voice Transcription
Goal: Capture system audio, stream it to AssemblyAI for live transcription, and display rolling text in the Dynamic Island overlay.
Audio Capture
User clicks "Live." The Renderer uses navigator.mediaDevices.getDisplayMedia({ audio: true }) to capture system audio. This is the only API that captures what the speakers output, not the microphone.
AudioWorklet Processing
Raw audio is piped through an AudioContext into a custom AudioWorkletProcessor that buffers 100ms of 16kHz mono PCM samples. This buffer size is critical — AssemblyAI rejects chunks shorter than ~100ms (Error 3007: Input Duration Violation).
IPC Relay
The Worklet posts base64-encoded audio chunks to the Renderer, which immediately relays them to Main Process via ipcRenderer.send('audio-chunk', data). Fire-and-forget pattern — no await, no backpressure.
WebSocket to AssemblyAI
Main Process manages a persistent WSS connection to AssemblyAI's Streaming Transcription V3 endpoint. Audio chunks are funneled into the socket. A 15-second connection timeout and isConnecting flag guard against hung connections.
Dual-Window Broadcast
AssemblyAI replies with partial and final transcription JSON. Main Process broadcasts the text to both the Chat Window and the Dynamic Island Window simultaneously using webContents.send().
Multi-Provider AI Orchestration
Goal: Query local models (Ollama) or cloud models (OpenRouter) seamlessly, enriched with contextual data.
The Renderer pulls from LocalStorage: active Persona (12 built-in interview types), System Prompt, user Resume, and target Job Description. These are merged into a hidden system message prepended to every request.
The UI determines which backend to hit based on user settings — Ollama for fully local, CORS-free inference, or OpenRouter for cloud-hosted models. Both are called the same way through IPC.
The payload is passed to Main Process which uses native net.fetch() — a Node.js network call that bypasses all browser CORS policies. A 120-second AbortController timeout protects against hanging requests.
The AI response (Markdown string) is pushed back to the Renderer. The UI renders it with syntax highlighting, one-click copy for code blocks, and full GFM support including tables and task lists.
3. Window Lifecycle Management
Imposter manages three distinct window types, each with different creation timing, persistence, and destruction behavior:
| Window | Created | Lifetime | Content Protection | Always On Top |
|---|---|---|---|---|
| Chat (Main) | App boot | Persistent | Yes (Stealth) | screen-saver level |
| Dynamic Island | App boot | Persistent | Yes | screen-saver level |
| Snipper | On shortcut | Ephemeral | No | Fullscreen |
4. Security Model
Privacy isn't a feature — it's the architectural foundation. Every design choice is made to ensure data stays local.
Renderers cannot access Node.js. All OS interactions go through hard-coded IPC channels in preload.js. No dynamic channel creation is possible.
Personas, resumes, API keys, and conversation history are stored in browser LocalStorage. No telemetry, no analytics, no server-side persistence.
Only two outbound connections exist: LLM API calls (user-configured) and AssemblyAI WebSocket (optional). Both require user-provided API keys.
No GPU cache, no disk-level session persistence. When the app closes, in-memory state is destroyed. Only explicit LocalStorage data survives restarts.
5. Development Challenges & Solutions
Building a robust desktop overlay app is fundamentally different from web development. Here are the real problems encountered and how they were solved:
Silent crashes on API failures or network timeouts▼
Deep, process-level crash guards: process.on('uncaughtException') and process.on('unhandledRejection').
Every IPC handler and Window creation call is wrapped in try/catch. A 120-second AbortController prevents AI requests from hanging indefinitely.
WebSocket connections to AssemblyAI randomly dropping or hanging▼
An aggressive isConnecting state flag prevents duplicate connections. A 15-second connection timeout fires if the handshake stalls.
Teardown logic individually cleans up AudioContext, WorkletNode, MediaStream tracks, and WebSocket — preventing cascading resource leaks where one dangling handle blocks garbage collection.
CORS errors when calling OpenRouter/Ollama from the UI▼
Browsers enforce CORS; Node.js doesn't. Solution: all API traffic is proxied through the Main Process using net.fetch(). The Renderer never makes direct HTTP calls to external services.
This also provides better error handling — Main Process can catch 4xx/5xx responses and transform them into user-friendly error messages before sending to the UI.
White screen on high load (Render Process Gone)▼
Listener on win.webContents.on('render-process-gone') instantly destroys the corrupted Chromium process and spawns a fresh replacement window.
The Main Process is unaffected — it continues managing shortcuts, transcription, and other windows. Only the crashed renderer is recycled.
AssemblyAI Error 3007: Input Duration Violation▼
The default ScriptProcessorNode sent audio frames too small for AssemblyAI's minimum duration requirement.
Replaced with a custom AudioWorkletProcessor that accumulates samples in an internal ring buffer and only flushes when 100ms of audio is available. This eliminated all duration violations.
6. Contributing & Local Development
Imposter is open source and welcomes contributions. Here's how to get started:
src/main/main.js— App entry pointsrc/main/preload.js— IPC bridgesrc/renderer/app.js— Chat UI logicsrc/renderer/pcm-processor.js— Audio worklet
ASSEMBLYAI_API_KEY— For transcriptionOPENROUTER_API_KEY— For cloud AI- Ollama runs locally — no key needed
